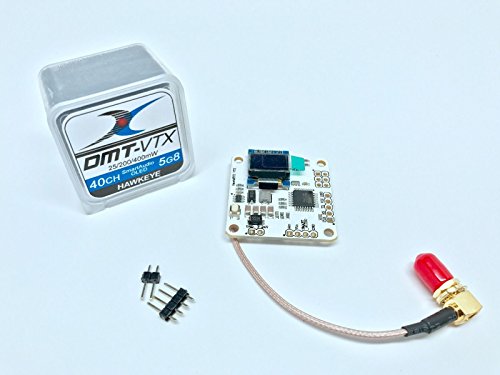

UBAD DMT VTX w/OLED Powered by Hawkeye FCC Compliant

Description

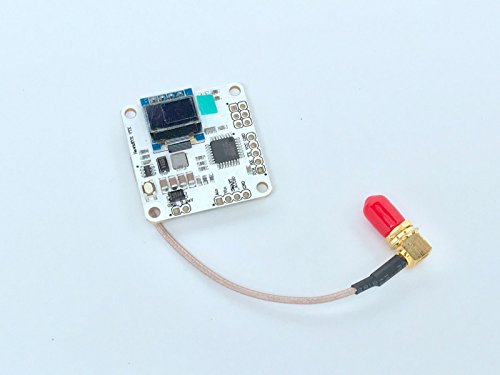

FCC CompliantUBAD DMT VTX w/OLED Powered by HawkeyeIn another joint effort by UBAD, Shea Ivey, and Hawkeye, we bring you a tiny, feature rich, and reliable vTX that includes an OLED and Smart Audio (A TBS Protocol). No more difficult configuring via a cluttered GUI.  The in house designed and programmed OLED allows the display of essential information. Video Transmitter Features: Size length 36mm, width 36mm, height 5mm (hole spacing 30mm) Status LEDs Indicates power and transmit Large Cap Large capacitors for clean power. Voltage - 7.4v-24v input voltage. Weight  14.89 grams 25/200/400mw Transmitter Designed around a custom vTX module only found on UBAD manufactured FPV Products. Power Draw: TBDmah @ 25mw 5905                      TBDmah @ 200mw 5905                       TBDmah @ 400mw 5905 Values may very depending on frequency and temperature. 40 Channel *40 channel range tested. NTSC/PAL: Auto detected Antenna Connector: SMA Pigtail For Smat Audio Support please visit: https://github.com/betaflight/betaflight/wiki/Unify-Smartaudio
