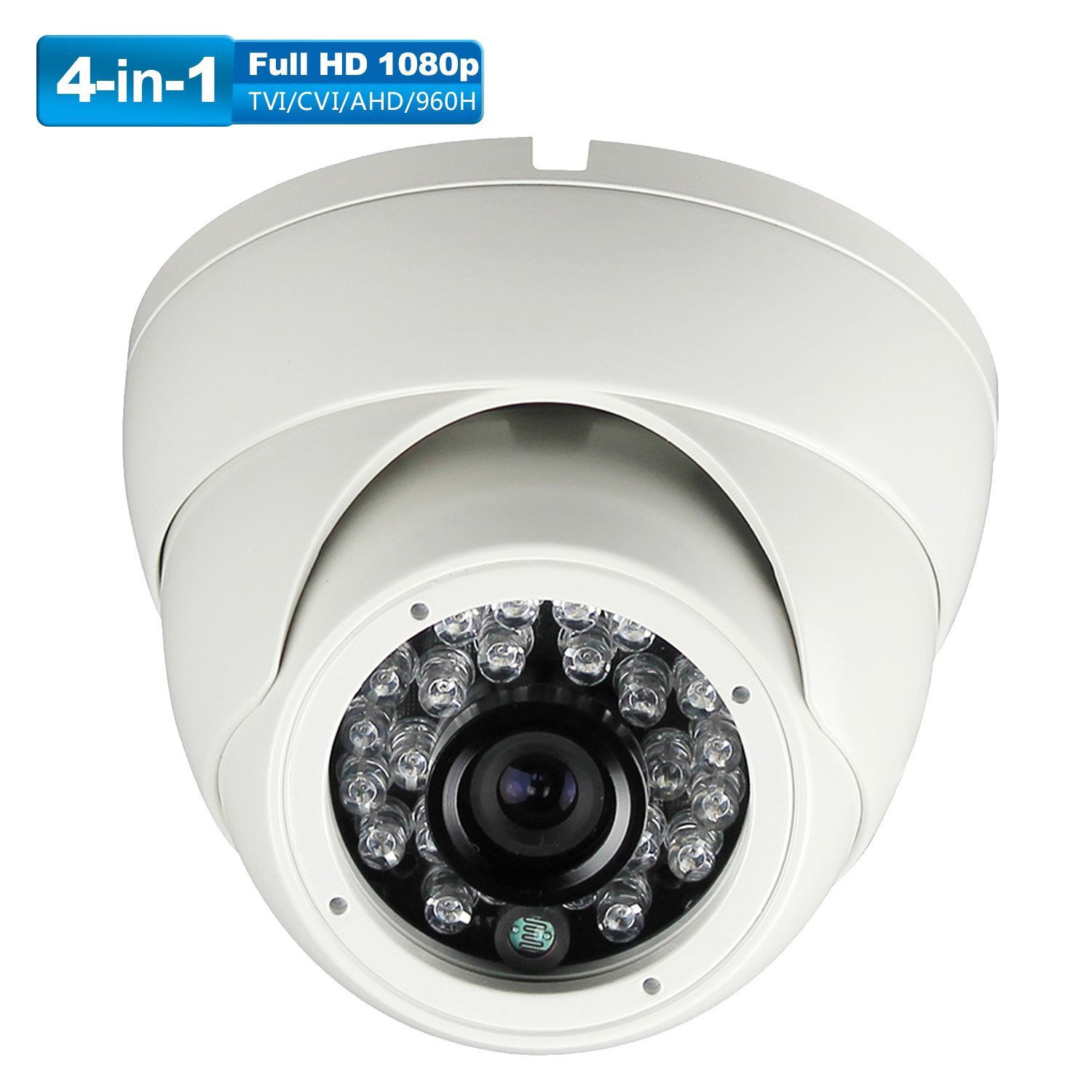

Universal Dome Security Camera 1080P 4 in1 (TVI, AHD, CVI, CVBS) 3.6mm Fixed 2.4MP Image Sensor Day/Night 65ft IR Distance Indoor & Outdoor IP 67 Waterproof Surveillance Camera
Description
- 4 IN 1 Security Camera ：It has OSD Menu that can change the 4 different video output TVI,AHD, CVI and CVBS (700TVL) and adjust the video setting.
- HD Resolution : The camera employs 1/2.7″CMOS Image Sensor with 2.4 Megapixel Resolution and an advanced circuit design. The resolution is as high as 1080P, which ensures clear and bright pictures security solution monitoring activity indoors and outdoor .
- IR Night Vision : Built-in 3.6mm fixed lens, effectively extend your observation range. With 24 pcs IR infrared LEDs, it has 65 feet IR range, can change from color to black automatically and take clear picture during both day- and night-time.
- Dome Camera Waterproof: The IP67 weather-rated housing provides protection from elements, including dust and sand, as well as harsh weather conditions, such as rain and snow.

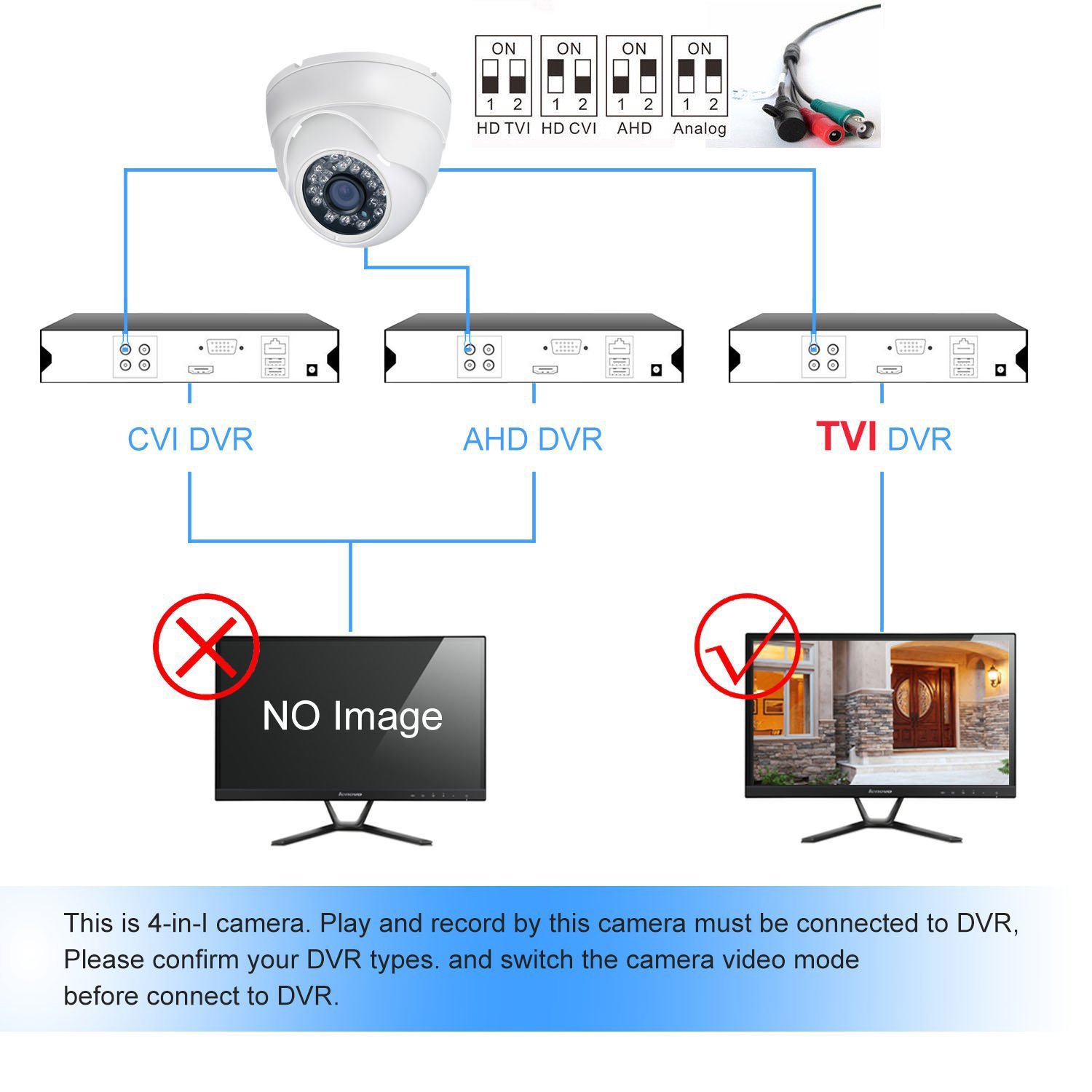

- Please notice:Default Video MODE is 1080P TVI MODE, Compatible with all Analog DVRs. 1080P Video Mode must be switched according to your DVR

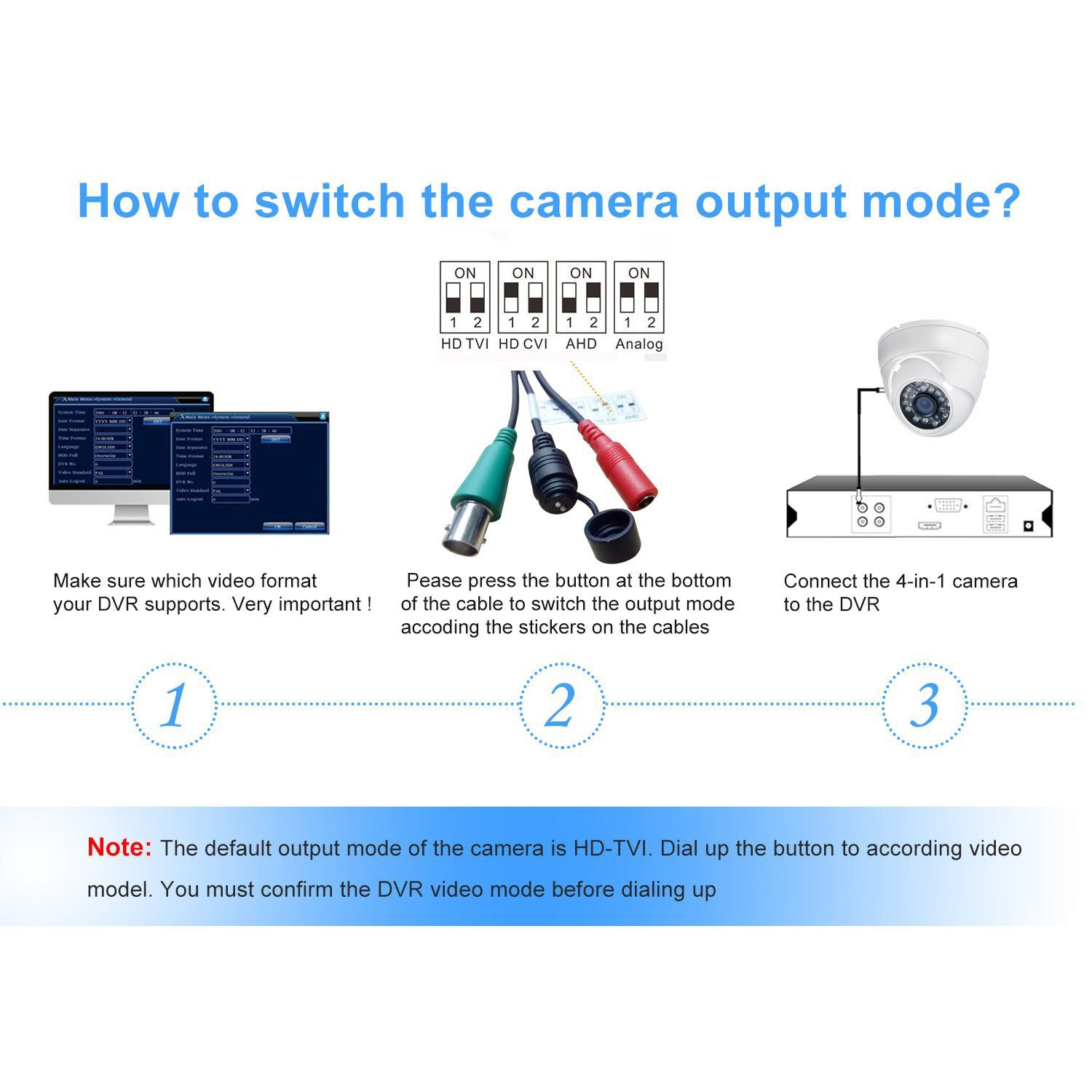

Operation Mode CVBS:Up/Up CVI:Up/Down AHD:Down/Up TVI:Down/Down Trouble Shooting Problem:Image normal in the day while vague or being interfered by horizontal stripes at night Solution:It is the reason that power is not enough or power cable is too long.Change power supply or shorten power cable. Problem:No image Solution:There are three reasons:if it is Wrong connection to the video cable,you need reconnect;if power gets problem,you need change power supply;if having not connected to power supply,you need to plug in. Specification Image Device 1/2.8" SONY Exmor Progressive Scan CMOS Sensor, 2.4MP Effective Pixels 1920(H) x 1080(V) TV System PAL/NTSC (OSD) Day/Night External (default)/Auto/Color/B&W (OSD) S/N Ratio =72dB Min. Illumination 0.01Lux, 0Lux with IR on BLC AUTO Electronic Shutter AUTO/ 1/50(1/60)-1/50,000sec AWB AUTO OSD Manual button / UTC Video Out TVI / CVI / AHD / CVBS switchable * 1080P@30fps TVI (default) Lens MP 3.6mm LED Quantity 24pcs F5 IR 850nm LED IR Distance 45 - 75ft Water Proof Rating IP67 Power DC12V 300mA Operation Temp. Temp. 14F to 122F Dimension 3.70in x 2.63in Weight 0.94LBS
